Low Noise Deep Groove Ball Bearing Single Row 6411 6412 6413 6414 ZZC3 2RS

Brand Name : HDBB

Model Number : 6411 6412 6413 6414 ZZC3 2RS

Certification : ISO9001 & GB307

Place of Origin : CHINA

MOQ : 10 Pcs

Payment Terms : T/T , Western Union, RMB

Supply Ability : 800,000 Pcs per Month

Delivery Time : 5-7 Works days

Packaging Details : Single Color Box/Industrial Packing

Model : 6411 6412 6413 6414

No. of Row : Single Row

Structure : Deep Groove

Hardness : HRC58-62 Russia 59-63 HRC

Seals : Rubber Seal, Steel Shield

Clearance : C0 C3 C4 Clearance Bearing

Feature : Low Noise. Long Life Durable

Contact Now

6411 6412 6413 6414 ZZC3 2RS Deep Groove Ball Bearing Factory Direct Supply Of Various Models With High Quality

1 . Deep Groove Ball Bearing Features

The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.


2 . Deep Groove Ball Bearing Types

Basic open type;
With snap ring groove on the outer ring (-N);
With one shield (-Z) on one side or two shields (-2Z) on both sides;
With one seal (-RS) on one side or two seals (-2RS) on both sides.

Type
Introduction
Z
Metal Seal On One Side
ZZ
Metal Seal On Both Side
ZN
One Side Metal Seal+Snap Ring
2ZN
Double Sides Metal Seal+Snap Ring
Series
Bearing's Model Numbers
1) 6000 series:
604.605.606.607.608.609.6000.6001.6002.6003.6004.6005.6006.6007.
6008.6009.6010.6011.6012
2) 6200 series:
624.625.626.627.628.629.6200.6201.6202.6203.6204.6205.6206.6207.
6208.6209.6210.6211.6212
3) 6300 series:
634.635.636.637.638.639.6300.6301.6302.6303.6304.6305.6306.6307.
6308.6309.6310.6311.6312
4) 6400 series:
6403.6404.6405.6406.6407.6408.6409.6410.6411.6412.6413.6414.6415.6416.6417.6418.6419.6420
5) 6700 series:
673.674.675.676.677.678.679.6700.6701.6702.6703.6704.6705
6) 6800 series:
685.686.687.688.689.6800.6801.6802.6803.6804.6805.6806.6807.6808.6809.6810.6811.6812
7) 6900 series:
695.696.697.698.699.6900.6901.6902.6903.6904.6905.6906.6907.6908.6909.6910.6911.6912
8)16000 series:
16001.16002.16003.16004.16005.16006.16007.16008.16009.16010.
16011.16012.16013.16014.16015
Model
d mm
D mm
H mm
W kg
Dynamic
Static
6403
17
62
17
0.27
22900
22700
6404
20
72
19
0.4
31000
15200
6405
25
80
21
0.53
36100
38200
6406
30
90
23
0.735
43600
31000
6407
35
100
25
0.952
55000
56800
6408
40
110
27
1.221
63700
65500
6409
45
120
29
1.52
77200
77500
6410
50
130
31
1.855
83000
92200
6411
55
140
33
2.316
100000
100000
6412
60
150
35
2.811
110000
109000
6413
65
160
37
3.342
118000
118000
6414
70
180
42
4.896
144000
140000
6415
75
190
45
5.739
154000
154000
6416
80
200
48
6.752
164000
163000
6417
85
210
52
7.933
173000
136000
6418
90
225
54
9.56
184000
149000

Low Noise Deep Groove Ball Bearing Single Row 6411 6412 6413 6414 ZZC3 2RS

Ball bearing Structure :

Low Noise Deep Groove Ball Bearing Single Row 6411 6412 6413 6414 ZZC3 2RS

3 . Deep Groove Ball Bearing Applications

The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles,
agricultural machines , power tools, House hold appliances, Washing machines motors, Clutch bearings, Trailers, Casters, and various other special machines.

Low Noise Deep Groove Ball Bearing Single Row 6411 6412 6413 6414 ZZC3 2RS

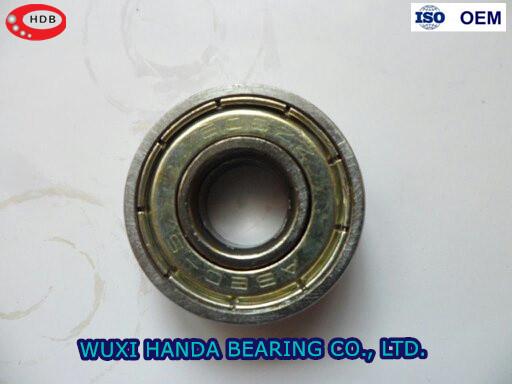

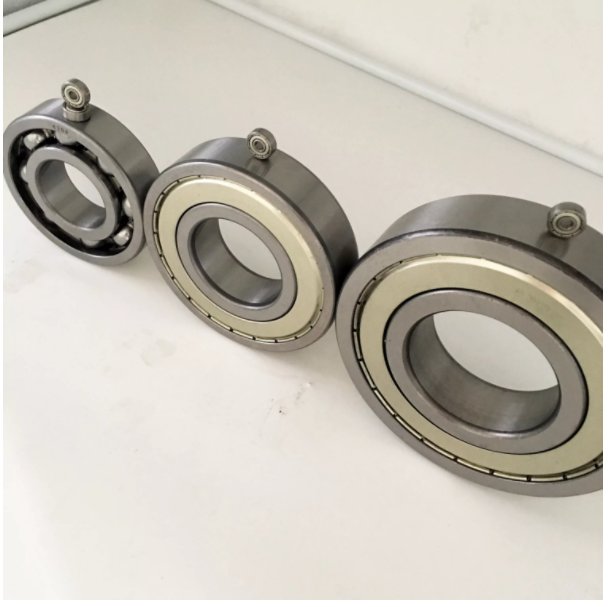

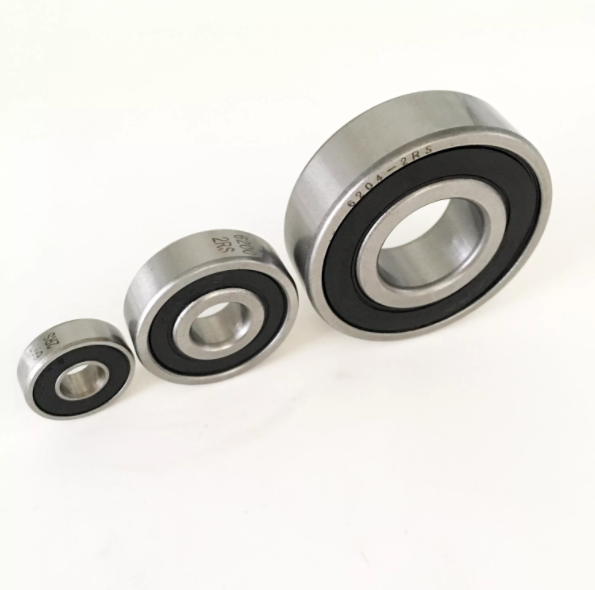

4 . Deep Groove Ball Bearings Show

Low Noise Deep Groove Ball Bearing Single Row 6411 6412 6413 6414 ZZC3 2RS

Low Noise Deep Groove Ball Bearing Single Row 6411 6412 6413 6414 ZZC3 2RS
